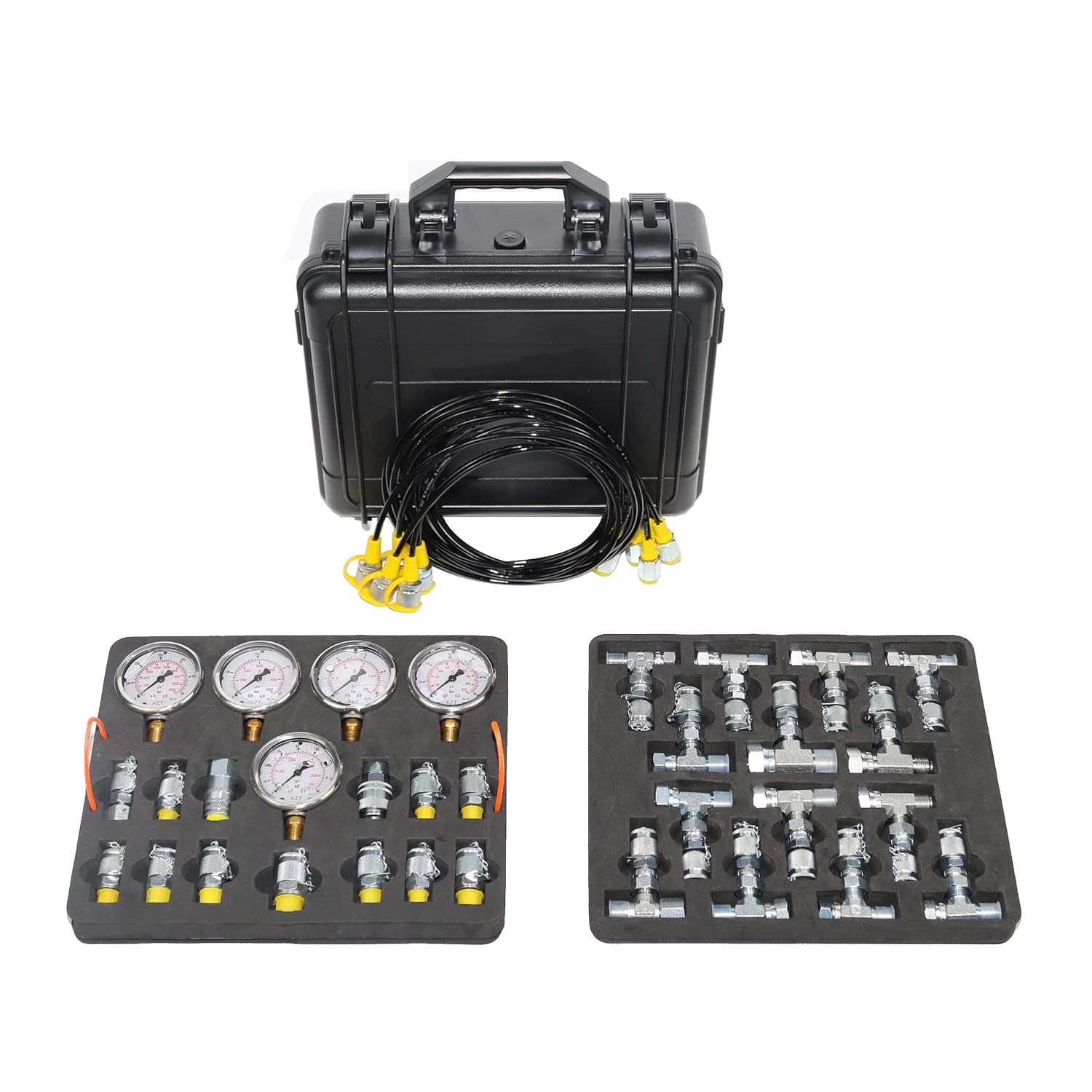

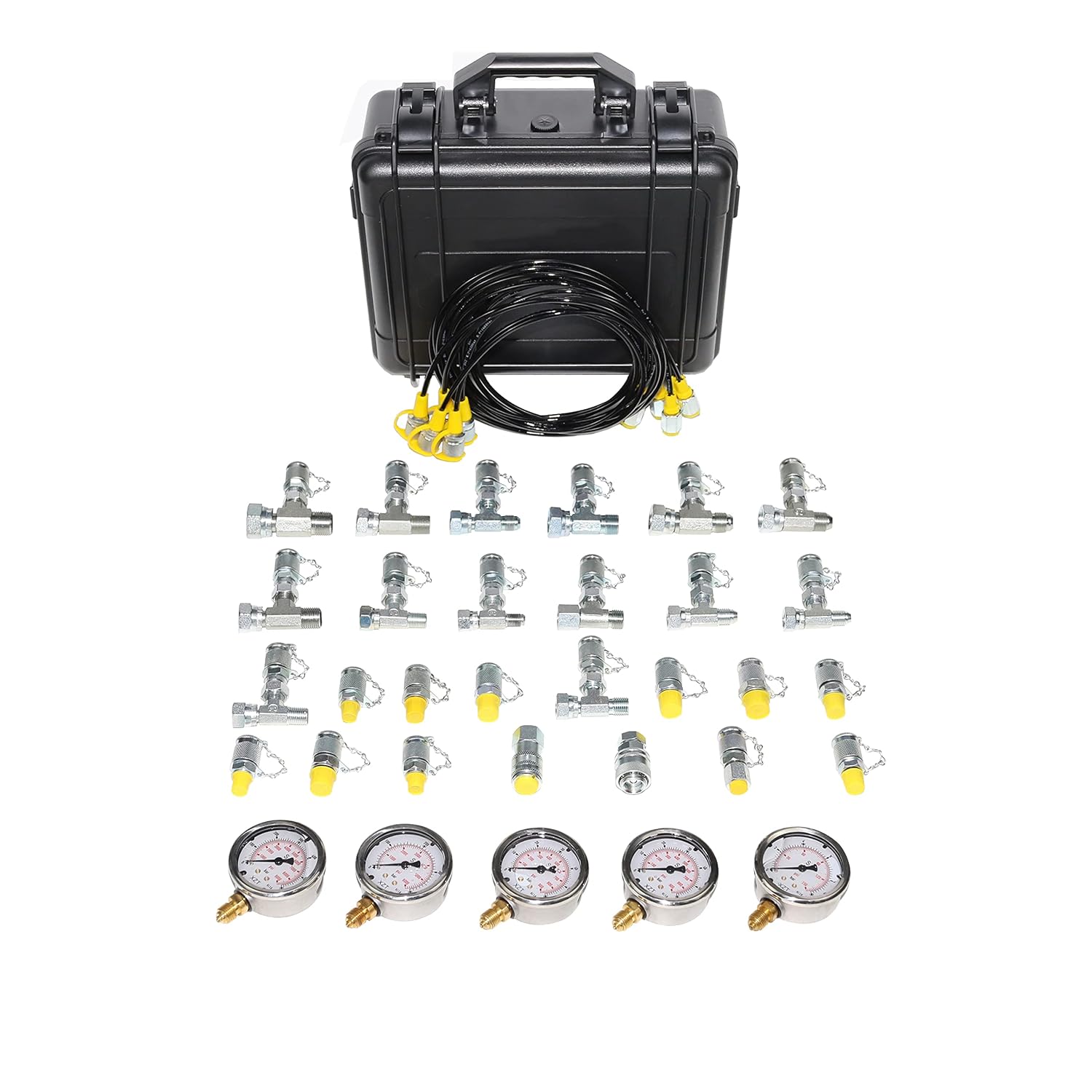

XZT 60K Digital Hydraulic Pressure Test Coupling Kit,Pressure Gauge,Test Hose,Test Point for Excavator Construction Machinery Repair

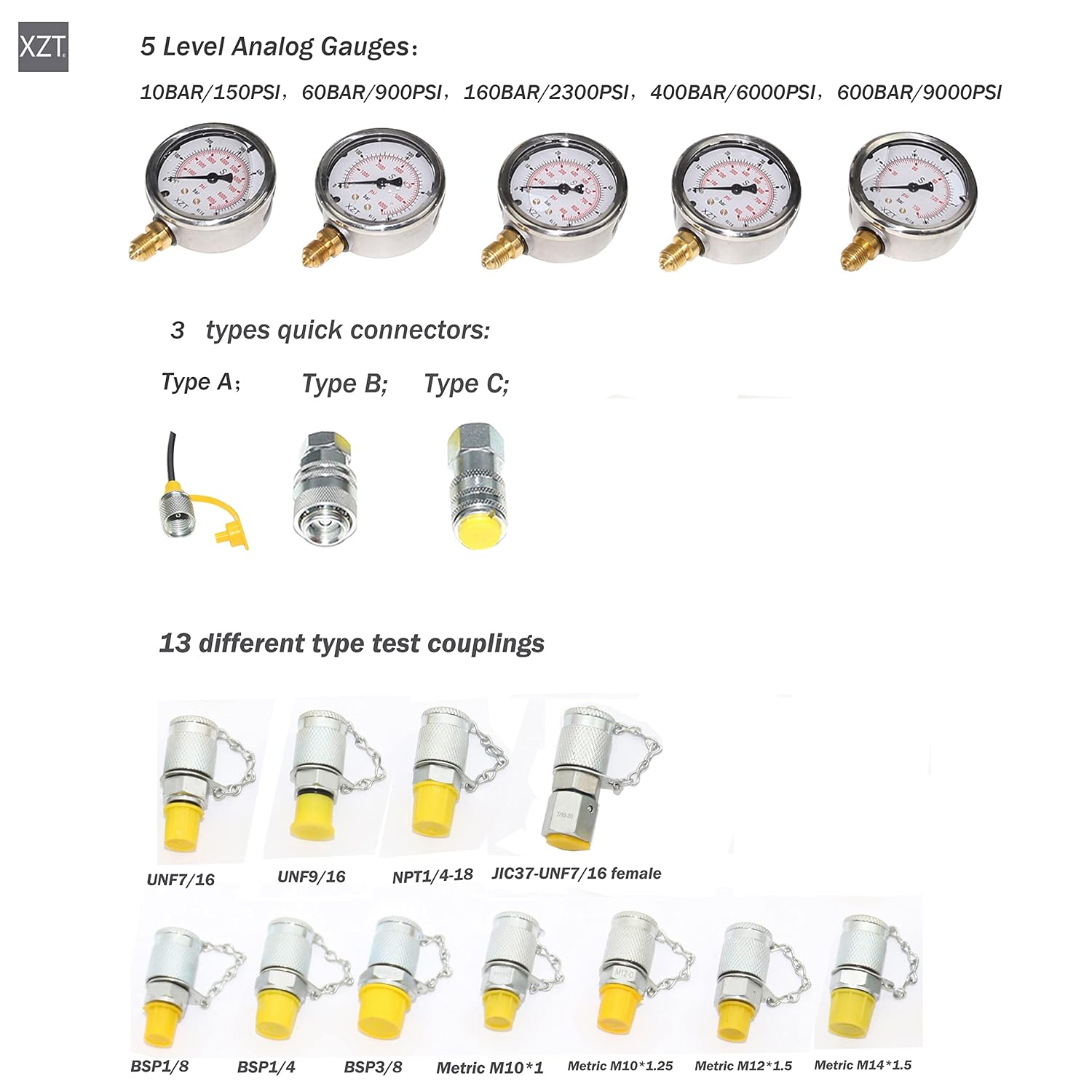

XZT -60K Excavator Repair Kit Contain Follow items： Contain: Description -------------------------- Quantity: PCS Analog Pressure Gauge 1 Analog Pressurel gauge：Ø63mm～10BAR/150PSI/1MPa *1 2 Analog Pressurel gauge：Ø63mm～60BAR/900PSI/6MPa *1 3 Analog Pressurel gauge：Ø63mm～160BAR/2300PSI/16MPa *1 4 Analog Pressurel gauge：Ø63mm～400BAR/6000PSI/40MPa *1 5 Analog Pressurel gauge：Ø63mm～600BAR/9000PSI/60MPa *1 Test Coupling 1 Test coupling：G1/8-28 *1 2 Test coupling：G1/4-19 *1 3 Test coupling：G3/8-19 *1 4 Test coupling：M10*1 *1 5 Test coupling：M10*1.25 *1 6 Test coupling：M12*1.5 *1 7 Test coupling：M14*1.5 *1 8 Test coupling：UNF7/16-20 *1 9 Test coupling：UNF9/16-18 *1 10 Test coupling：NPT1/4-18 *1 11 Test coupling：JIC37-UNF7/16 Female *1 Quick Release Coupling 1 Quick connector A M16*2 female/this connector is in end of hose2 2 Quick connector B for Catpelier/CASE/John Deere-(BSP1/8 F) This Quick connector Compatible Parker PD Series quick couplings1 3 Quick connector C for Komatsu/HITACHI-(BSP1/4 F)1 Hydraulic Run Tees 1 BSPP-1/4 *1 2 BSPP-3/8 *1 3 SAE JIC37-7/16UNF *1 4 SAE JIC37-9/16UNF *1 5 ORFS-9/16-18UNF *1 6 ORFS-11/16-16UNF *1 7 ORFS-13/16-16UNF *1 8 DKO-M14*1.5-08L *1 9 DKO-M16*1.5-10L *1 10 DKO-M18*1.5-12L *1 11 JIS30(Komatsu)-M14*1.5 *1 12 JIS30(Komatsu)--M18*1.5 *1 13 JIS30(Kobelco)-BSPP1/4 *1 14 JIS30(Kobelco)-BSPP3/8 *1

• 5 Level Analog pressure gauge，5FT test hose *4； 10FT test hose *1，11 type test couplings, 3 type quick connectors
• 6 type Hydraulic Run Tees for most brand excavator and construction machine
• Easy to USE, easy to carry
• can test hydraulic pressure for excavator ,construction machine, hydraulic system
• Packing Weight is 16.5 LBS
