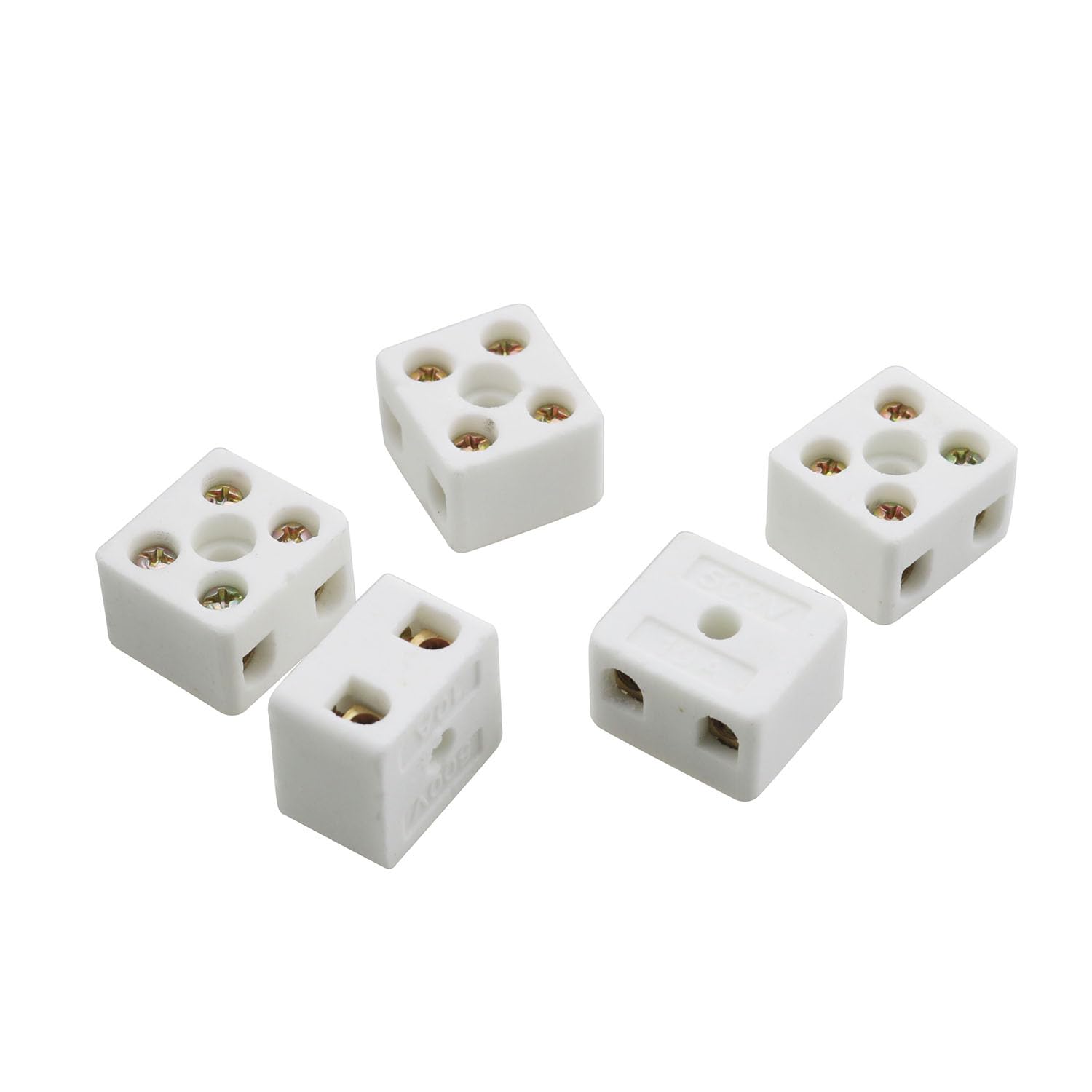

TAODAN 5PCS Bidirectional 5 Holes Ceramic Terminal Block 380V 25A Connector for Wire Cable Connection
Product details
| Management number | 250062744 | Release Date | 2026/09/17 | List Price | US$2.40 | Model Number | 250062744 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1.Specifications: Bidirectional 5 holes 380V 25A, 0.85x0.77x0.55 inches/21.5x19.5x14mm (length, width, height), connector diameter: 3mm/0.12 inches. 2.Advantages: Manufactured from high-frequency ceramic material, offering insulation, high-temperature resistance, and anti-ageing properties. 3.Applications: Suitable for wire and cable connections, with high-temperature resistance. Widely applicable in power connection cables, premium sockets, specialised industrial sockets, transformers, instruments, televisions, automobiles, etc. 4.User-friendly operation: Insert one wire halfway into the terminal hole, secure with a screw, then connect the second wire in the same manner to complete the wiring. 5.Package contents: 5 ceramic terminal blocks.
- 1.Specifications: Bidirectional 5 holes 380V 25A, 0.85x0.77x0.55 inches/21.5x19.5x14mm (length, width, height), connector diameter: 3mm/0.12 inches.
- 2.Advantages: Manufactured from high-frequency ceramic material, offering insulation, high-temperature resistance, and anti-ageing properties.
- 3.Applications: Suitable for wire and cable connections, with high-temperature resistance. Widely applicable in power connection cables, premium sockets, specialised industrial sockets, transformers, instruments, televisions, automobiles, etc.
- 4.User-friendly operation: Insert one wire halfway into the terminal hole, secure with a screw, then connect the second wire in the same manner to complete the wiring.
- 5.Package contents: 5 ceramic terminal blocks.
| ASIN | B0FS1M6MND |
|---|---|
| Model | TAODAN-TB-5x5-25A |
| Brand Name | TAODAN |
| Part Number | 67288-TCCTB-5 |
| Manufacturer | TAODAN |
| Mounting Type | Panel Mount |
| Connector Type | IDC, Screw |
| Current Rating | 25 A |
| Number Of Poles | 5 |
| Number of Items | 5 |
| Centerline Length | 0.85 inches |
| Number of Positions | 5 |
| Item Dimensions W x H | 0.77"W x 0.55"H |
