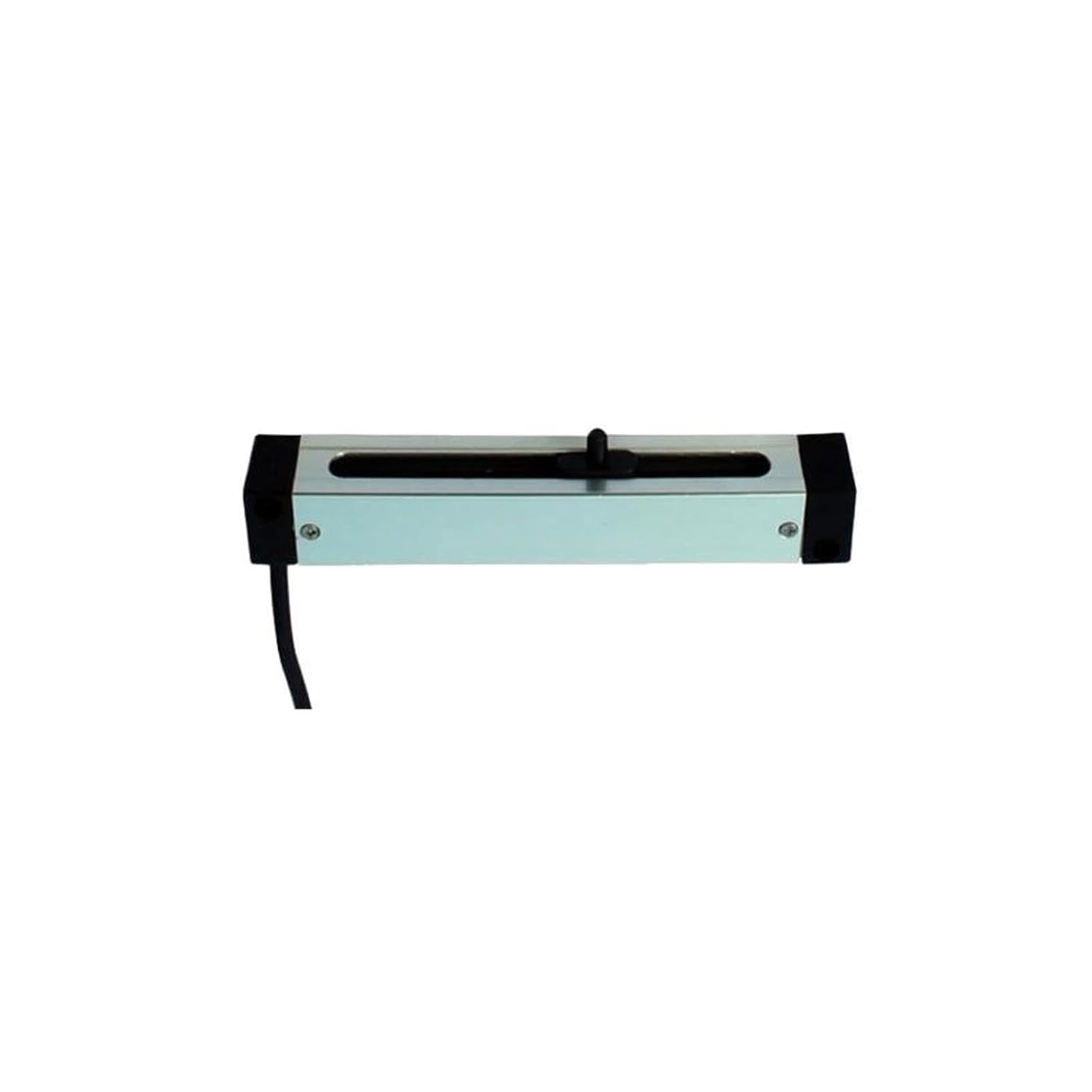

Small Size Linear Potentiometer Transducer Ksf 5mm-120mm Printing Machinery Used Displacement Sensors Easy Installation

Product Descriptionslider type linear position sensor KSF 5mm-120mmKSF linear position sensor is a super-minitype with a side slider, suitable for printing equipment and valve control,textile machinery, and so on.Main Feature1.Small installation size,slider type for the measuring range 5mm-120mm2. Adopting advanced components in electric parts and operation parts.3. High linear precision output, repeatability precision.4. Variety of output signal: 4-20mA/ 0-5V/0-10V /RS485.ApplicationsKSFwith a side slider, suitable for printing equipment and valve control,textile machinery, and so on.Technical DataKSF Linear Position Sensor5mm-15mm20mm-30mm35mm-120mmLinear Precision (±%FS)±0.1%~0.5%FSResistance (±10%)5Output signalstandard: 0~100% × input voltage (change with the movement of the rod)optional: 0-5V/0-10V/4-20mA/RS485 output need an extra moduleMechanical strokerange+3mmResolutionInfiniteRepeatability Precision0.01mmMax Speed5m/SMax. return Speed1m/sSensitivity1 Input Voltage(4~5): 24VDCMaterial for transducer caseAnodised aluminiumProtection levelIP65Useful electrical stroke(mm)5 10 15 25 35 50 60 70 120Slider Type SensorDetailed ImagesElectronic : NoModel Number : KSF Mini Linear ScaleDIY Supplies : ElectricalOrigin : Mainland ChinaOutput Voltage : Analog SensorMeasurement Stroke : 5mm~120mmLinearity : 0.1%FS~0.5%FSResistance : 5kilohmResolution : Infinite

• LSCCLMKJ Small Size Linear Potentiometer Transducer Ksf 5mm-120mm Printing Machinery Used Displacement Sensors Easy Installation
