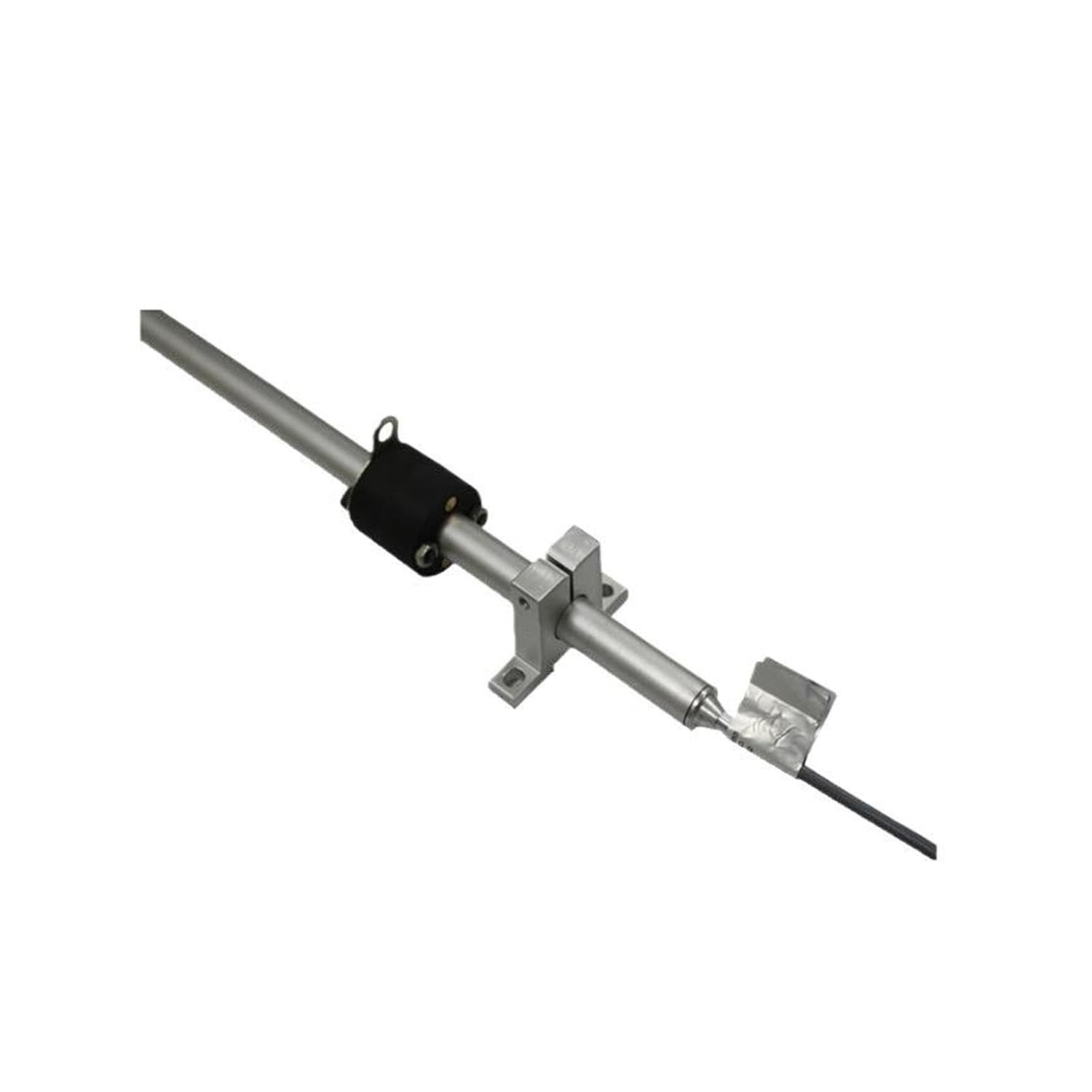

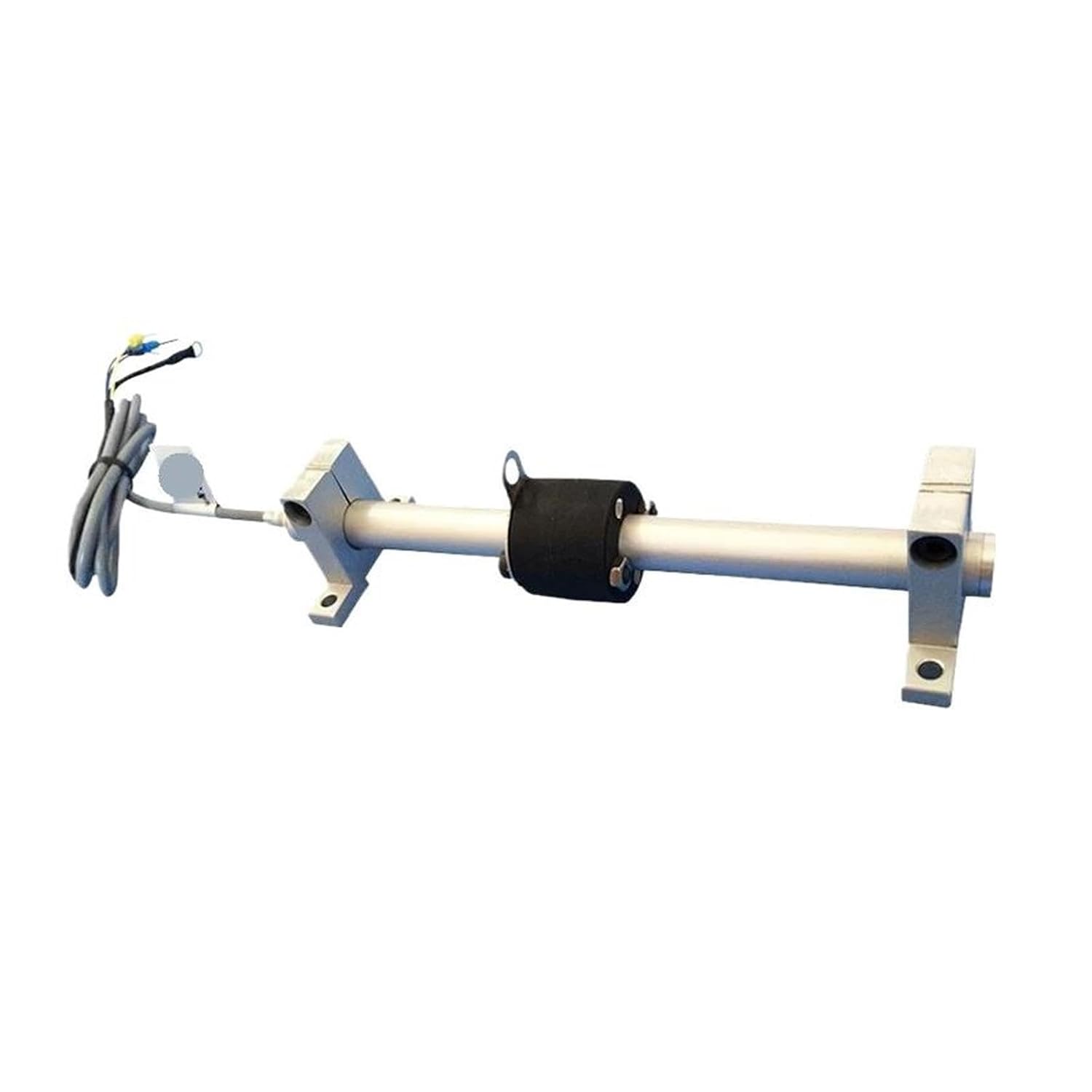

Magnetic Resistance Sensor Pme12 50mm-650mm Linear Displacement Transducer/Sensor Waterproof Dustproof

Product DescriptionMagnetic Resistance Sensor PME12 50mm-650mm Linear Position Sensor Analog OutputStandard Specifications:PME12 Magnetoresistivesensor50mm-1000mmLinear Precision(±%FS)±0.05%-0.3%Sensitivity0.05mm-0.1mmResistance Tolerance±10%DIN Vibration (IEC68T2-6)12g,10...2000HZPointer Resistance0.5NShock Test (IEC68T2-27)50g,11ms,Single Row ClickTemperature Coefficient1.5ppm/Max. Input Voltage36VWorking Pressure2.5MPaMax. speed5m/sMax. acceleration10m/S2Output signalstandard: 0~100%×input voltage (change with the movement of the rod )optional: 0-5V/0-10V/4-20mA/RS485 output need an extra moduleRecommanded Temperature-40...+120MaterialAnodised aluminiumProtection levelIP67Very long life>10*1000000 cyclesMountingbrackets with adjustable distance between centersUseful electrical stroke (mm)50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000Applications PME12 magnetic resistance displacement sensor has devised unimpeded shaft design and sealing gread IP67,which can meet the displacement measurement requirements under moist environment or temporary immersion.Electronic : NoModel Number : PME12 Magnetic Resistance SensorDIY Supplies : ElectricalOrigin : Mainland ChinaOutput Voltage : Analog SensorItem : PME12 Magnetic Resistance SensorMeasurement Stroke : 50mm-650mmLinearity : 0.1%FS-0.05%FSResistance : 1kilohm-5kilohmResolution : InfiniteRepeatability Precision : 0.01mmMax Speed : 5m/sProtection : IP67

• LSCCLMKJ Magnetic Resistance Sensor Pme12 50mm-650mm Linear Displacement Transducer/Sensor Waterproof Dustproof
