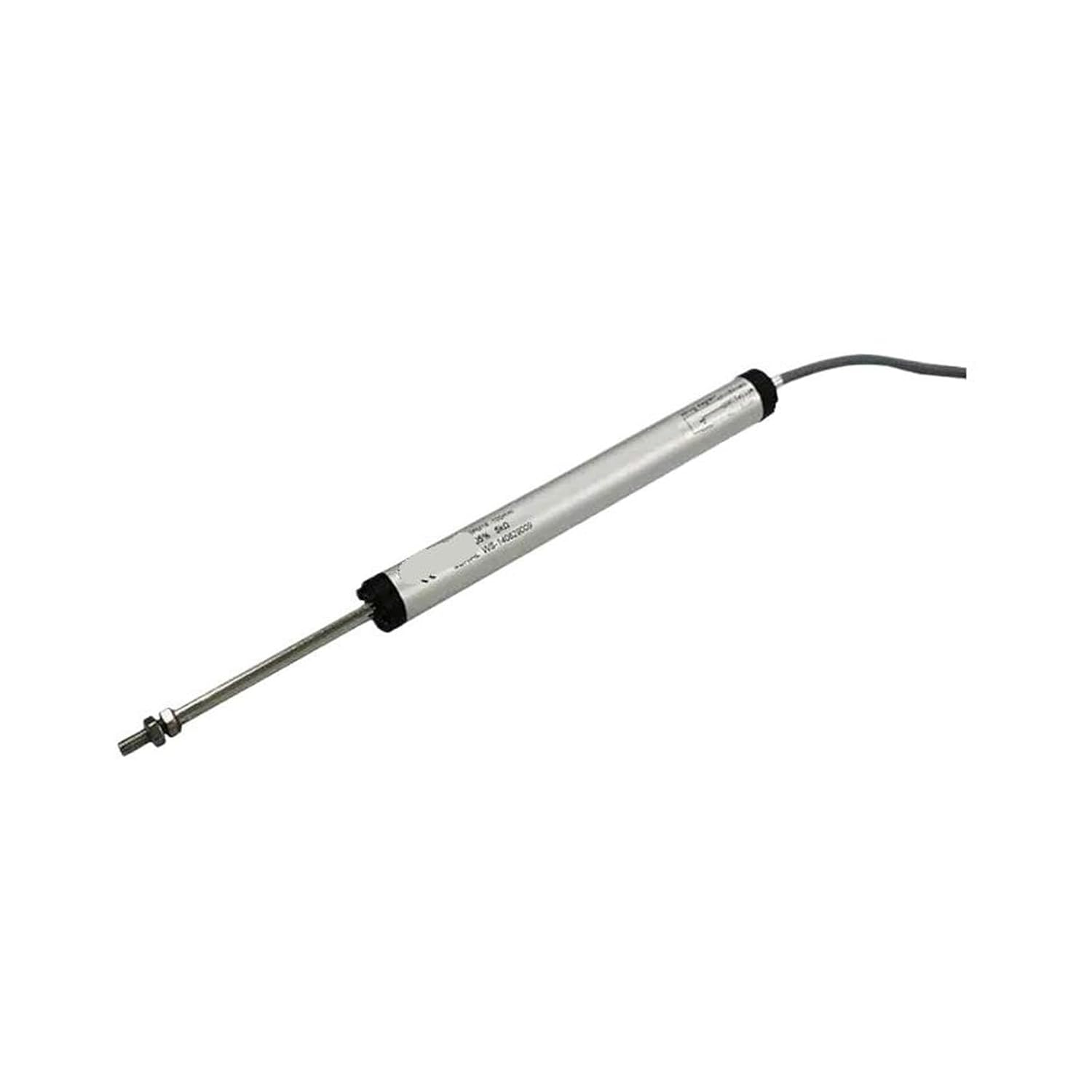

Displacement Transducer KPM18D 15mm-300mm Linear Position Sensors Resistance Ruler for Small Measuring Range
Product details
| Management number | 250275468 | Release Date | 2026/09/17 | List Price | US$58.02 | Model Number | 250275468 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product DescriptionDisplacement Transducer KPM18D 15mm-300mm Linear Position Sensors Resistance Ruler Shiping For Small Measuring RangeStandard Specifications:Rod Type Sensor10mm15mm25mm50~75mm100~300mmLinear Precision(±%FS)±0.1%~0.3%FS±0.1%~±0.05%Resistance(±10%)25Mechanical strokerange+3mmResolutionInfiniteRepeatability Precision0.01mmMax. Speed5m/SRecommended Temperature0-80;-20~+100Output signalstandard:0~100%×input voltage(change with the movement of the rod)optional:0-5V/0-10V/4-20mA/RS485output need an extra moduleSensitivity1 Temperature DriftinfinitesimalMaterial for transducer caseAnodised aluminiumMateria for pull shaftStainless steelProtection levelIP65MountingFixed by the heims joint at the both ends or metal mounting bracketsLife>100*1000000cycles,>25*1000000mUseful electrical stroke(mm)1015255075100125150175200225250275300Application:KPM is a twisted type, joint at the 2 ends. Suitable for short range and swinging moments, such like: robots, brick machines, ceramic machines, sluice gate, footwear machines and so on.Dimension:Company InformationElectronic : NoModel Number : KPM18D Linear Position SensorDIY Supplies : ElectricalOrigin : Mainland ChinaOutput Voltage : Analog SensorItem : KPM18D Linear Position SensorMeasurement Stroke : 15mm~300mmLinearity : 0.3%FS-0.05%FSResolution : InfiniteRepeatability Precision : 0.01mm
- LSCCLMKJ Displacement Transducer KPM18D 15mm-300mm Linear Position Sensors Resistance Ruler for Small Measuring Range
| ASIN | B0HFMPV1CX |
|---|---|
| Model | SIGBBLYNJ |
| Brand Name | LSCCLMKJ |
| Part Number | SIGBBLYNJ |
| Manufacturer | LSCCLMKJ |
| Number of Items | 1 |
