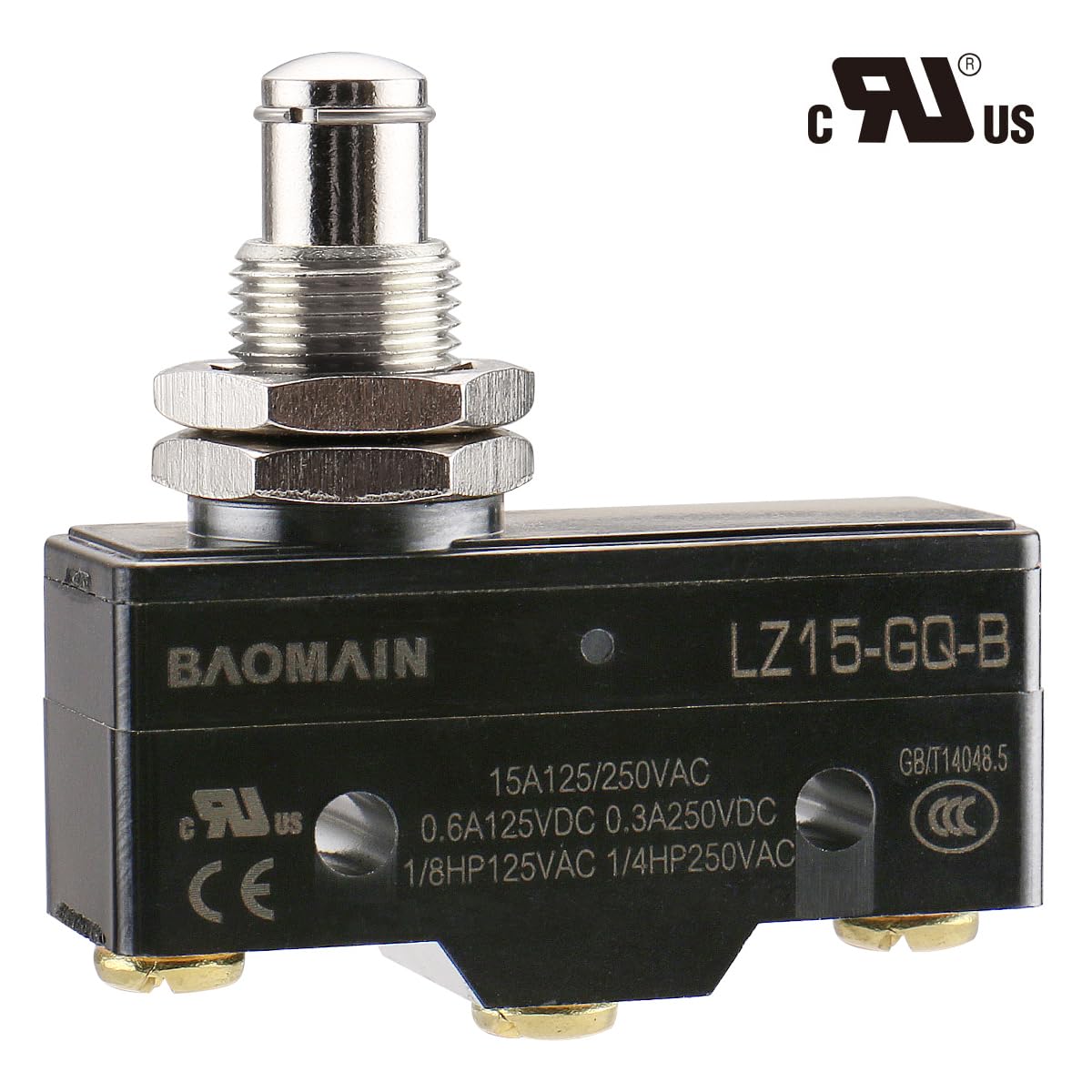

BAOMAIN Panel Mount Plunger Switch LZ15-GQ-B 15A Momentary,UL,2-Pack
Product details
| Management number | 250056382 | Release Date | 2026/09/17 | List Price | US$4.00 | Model Number | 250056382 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Description The Baomain Micro Switch is a durable, heavy-duty momentary switch delivering fast response and precise control for industrial, commercial, and DIY applications. Key Features Versatile Dual-Circuit Control: Features 3 screw terminals for quick and secure wiring, fully compatible with both AC and DC control circuits. High Durability & Safety: Designed for heavy-duty applications, delivering up to 2,000,000 mechanical operations and 100,000 electrical operations. Perfect for terminal limit protection in safety and control circuits. Compact & Easy Installation: Standard panel mount housing with small installation footprint fits easily into tight industrial spaces. Technical Specifications Model: LZ15-GQ-B Rating: 15A 125/250VAC Actuator Type: Panel Mount Plunger (Vertical Direct Push) Action Type: Momentary Contact Type: SPDT (1NO + 1NC + 1COM) Termination Type: 3 Screw Terminals Mounting Type: Panel Mount Switch Body Size: 49 x 17 x 24 mm / 1.93" x 0.67" x 0.95" (L*W*H) Fixing Hole Diameter: 4 mm / 0.16" Distance Between Hole Centers: 25.4 mm / 1" Package Includes: 2 x Micro Switch Applications Panel & Enclosure Integration: Perfect for embedded installation on control boxes, instrument panels, and machine enclosures requiring vertical linear motion detection. Mechanical Stops & Limit Switch: Works as an essential safety switch and end-of-travel limit control for machinery to prevent overrun. Broad Equipment Compatibility: Widely used in packaging machines, elevators, CNC equipment, industrial tools, conveyors, and home appliances.
- Panel Mount Plunger & Momentary: Features a heavy-duty Panel Mount Plunger designed for threaded panel installation, vertical direct-push actuation, and rapid reset.
- SPDT & 3 Screw Terminals: Built with SPDT (1NO + 1NC + 1COM) contact type and 3 Screw Terminals to ensure quick, convenient, and vibration-resistant wiring connections
- 15A 125/250VAC Rating: Rated for 15A 125/250VAC, engineered for reliable high-current AC control circuits and dependable terminal limit protection
- UL Recognized Component: Made with high-quality flame-retardant casing and certified as a UL Recognized Component, providing maximum safety, durability, and a long operational lifespan
- Enclosure & Panel Mount Application: Ideal for control box embedding, panel mounting, and vertical motion detection, widely used in industrial automation, machinery, CNC equipment, and limit protection
| ASIN | B01G0840VU |
|---|---|
| Model | LZ15-GQ-B |
| Wattage | 7200 watts |
| Terminal | screw terminal,screw terminals |
| Brand Name | Baomain |
| Unit Count | 2 Count |
| Item Weight | 0.27 g |
| Part Number | RZ-15GQ-B3 |
| Switch Type | Limit Switch |
| Circuit Type | 2-way |
| Contact Type | 1no 1nc |
| Control Type | momentary |
| Manufacturer | Baomain |
| Actuator Type | Plunger |
| Material Type | Brass |
| Mounting Type | Panel Mount |
| Connector Type | Screw |
| Control Method | Touch |
| Current Rating | 15 A |
| Operation Mode | ON-OFF |
| Number of Items | 2 |
| Contact Material | Brass |
| Operating Voltage | 250 volts |
| Specification Met | CE, UL |
| Number of Positions | 3 |
| Connectivity Protocol | X-10 |
| International Protection Rating | IP54 |
