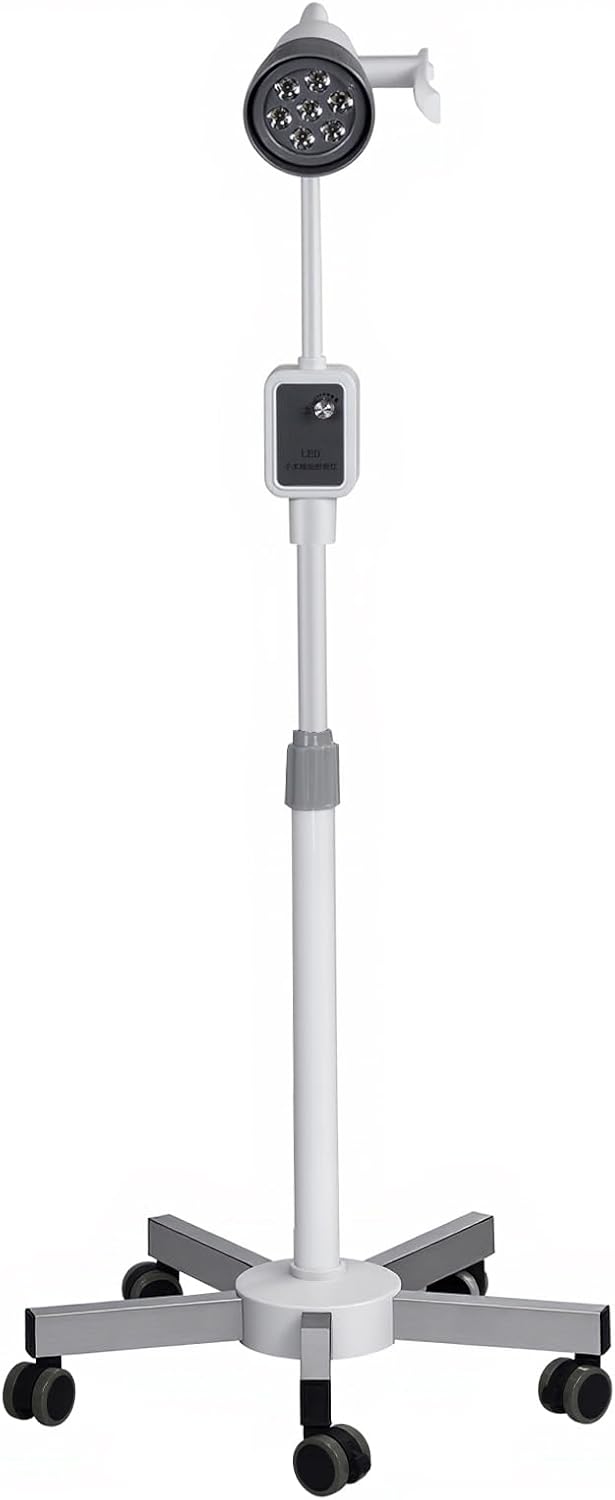

15W Mobile Floor Standing Dental LED Exam Light Flexible Adjusting Auxiliary Operating Light JD1000L

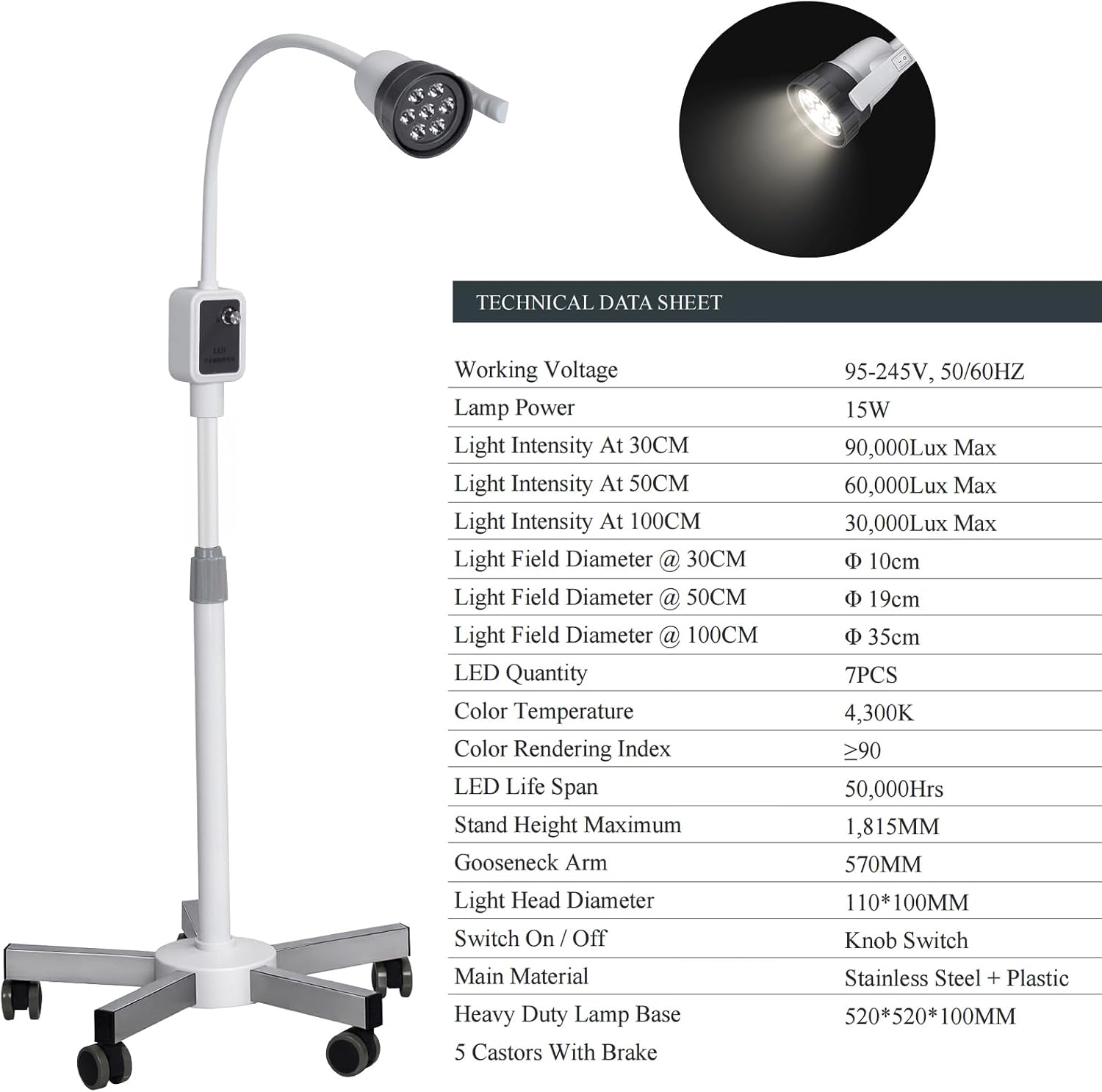

Technical Data: 1. Voltage: 95 - 245V, 50/60Hz 2. Lamp Power: 15W 3. Light Intensity: 90,000Lux In Maximum 4. Colour Temperature: 4,300K 5. Light Field Diameter @ 30cm: Φ10CM 6. Light Field Diameter @ 50cm: Φ19CM 7. Light Field Diameter @ 100cm: Φ35CM 8. Light Source: LED 9. Color render index: 90 10. LED Life time: 50,000hrs 11. Number of LED: 7pcs 12. Standard Height Maximum: 1,815MM 13. Goose-neck Arm: 570mm 14. Lamp Head Diameter: 110*100MM 15. Switch On / Off: Touch Knob / Lamp Head 16. Main Material: Stainless Steel + Plastic Packaging list: 1 * Surgical auxiliary light 1 * Instruction manual 1 set of screws and installation tools Installation diagram: Step 1: ① Unscrew the screws and washers at the bottom of the pole; ② Connect the bottom of the pole with the round groove of the base; ③Put the removed gasket on the bottom of the base, pass the screws through the gasket and the base, and use the prepared tools to lock the pole and the base. Step 2: Insert the equipped wheels into the corresponding slots at the bottom of the base one by one, and ensure that they are installed in place (pull them out slightly after installation. If they do not fall off, it means they are installed in place). Step 3: Connect the installed pole and base to the control box as a whole (insert the pole into the round hole under the control box, connect it with the screw inside the control box, and rotate the base until it is locked).

• 1. This model is vertical and consists of a light source, a lampshade, a control box, an adjusting rod, a vertical rod, and a wheeled base.
• 2. The adjusting rod is a 57CM long flexible adjusting arm that can be bent and positioned at all angles to maximize the need for illumination at different angles.
• 3. This product is suitable for consultation and preoperative examination, and auxiliary lighting in operating rooms.
