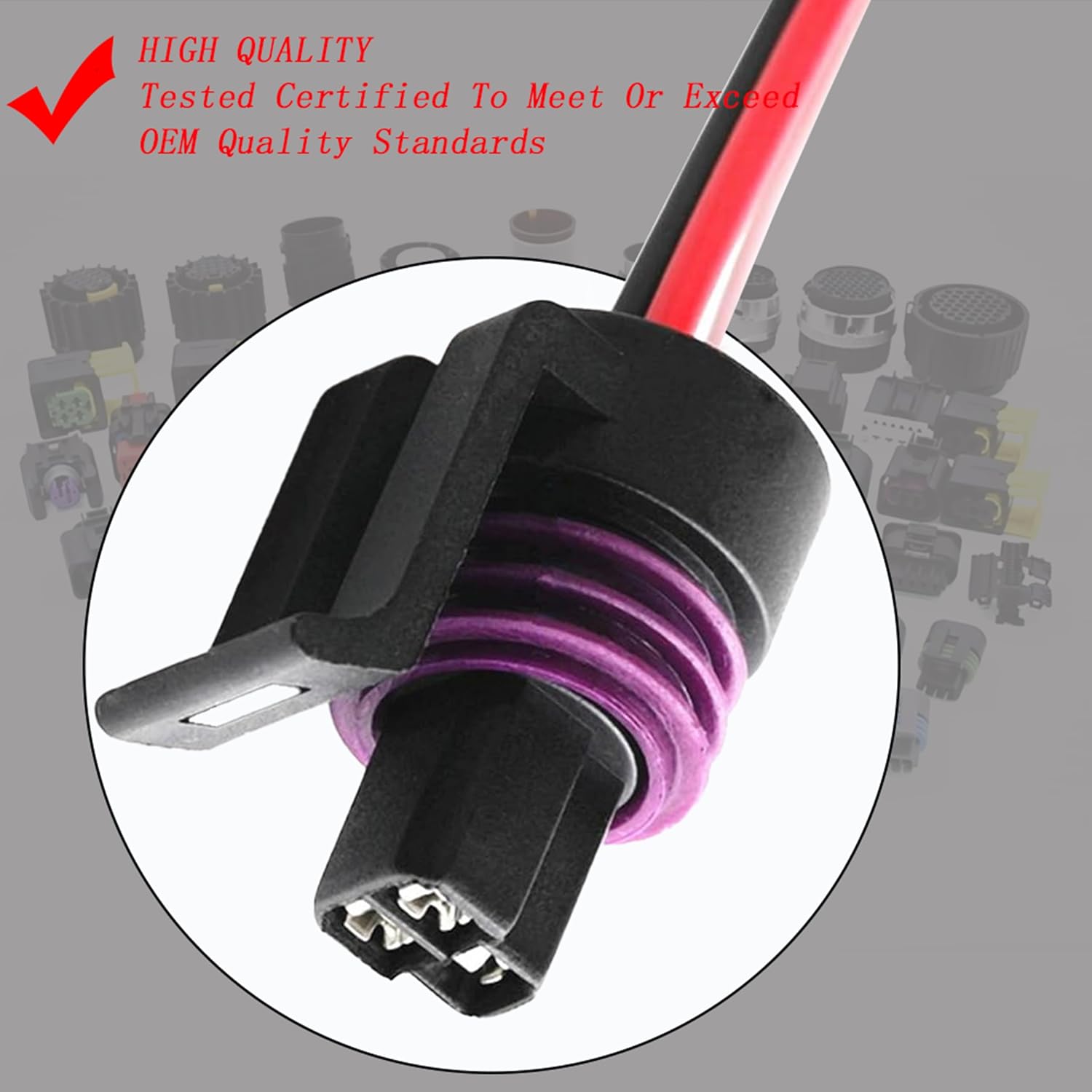

100Psi 150Psi 200Psi Pressure Transducer Sensor Connector Harness Plug 0-100-150-200 Psi Pressure Sender 1/8" -27 NPT Oil Pressure Transmitter Connector Harness Plug for Oil Fuel Air Water Pressure
Product details
| Management number | 249884155 | Release Date | 2026/09/17 | List Price | US$4.00 | Model Number | 249884155 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Pressure Range: 0-100 psi.0-150 psi.0-200 psi Material :Stainless steel Output: 0.5V – 4.5V linear voltage output. 0 psi outputs 0.5V, 50 psi outputs 2.5V, 100 psi outputs 4.5V Working Temperature: -40—+125ºC;. Works for oil, fuel, water or air pressure. Can be used in oil tank, gas tank, etc. Accuracy: ±1%FS; Thread: 1/8”-27 NPT. Overload Capacity: 2 times; Pressure Medium: The gas and liquid which is compatible with 316L stainless steel; Wiring: Red for IN+. Black for GND. Green for OUT. Load Resistance: ≤(supply power-6.5V/0.02A)Ω; Long-term stability: ± 0.2%FS/year; Temperature Effect on Zero: Typical: ±0.02%FS/ºC; Maximum: ±0.05%FS/ºC Temperature Effect on Sensitivity: Typical: ±0.02%FS/ºC; Maximum: ±0.05%FS/ºC; Shock Resistance: 100g; Anti-Shock: ≤±0.01%FS(X,Y,Z axes, 200Hz/g); Response Time: ≤1ms; Insulation Resistance: >100mΩ 500VDC; Explosion-proof Class: ExiaTTCT6; Electromagnetism Compatibility: EN50081-1; EN50082-2; IEC61000-4-3;
- *100Psi 150Psi 200Psi Pressure Transducer Sensor Connector Harness Plug- poor contact? Not working properly? Frequent power outages? Then you should replace the connector plug harness
- *FIT THE FOLLOWING VEHICLE -Pressure Range: 0-100 psi.0-150 psi.0-200 psi Material :Stainless steel Output: 0.5V – 4.5V linear voltage output. 0 psi outputs 0.5V, 50 psi outputs 2.5V, 100 psi outputs 4.5V Working Temperature: -40—+125ºC;. Works for oil, fuel, water or air pressure. Can be used in oil tank, gas tank, etc. Accuracy: ±1%FS; Thread: 1/8”-27 NPT. Overload Capacity: 2 times; Pressure Medium: The gas and liquid which is compatible with 316L stainless steel; Wiring: Red for IN+. Black for GND. Green for OUT. Load Resistance: ≤(supply power-6.5V/0.02A)Ω; Long-term stability: ± 0.2%FS/year;
- *REPLACE PART 1# - Replace For 100Psi 150Psi 200Psi Pressure Transducer Sensor Connector Harness Plug EN50081-1; EN50082-2; IEC61000-4-3;
- *DIRECT FIT- A direct replacement for proper installation and easy mounting, made from quality materials that meet or exceed OEM standards and are rigorously tested before leaving the factory. It works better, is more stable and lasts longer, let IXGKHC Helping you solve car problems.
- *Buy with confidence - order from IXGKHC. PLEASE CHECK IN DETAIL BEFORE PURCHASING, double check your vehicle's year, model, engine and litres.
| ASIN | B0FRLHSQJP |
|---|---|
| Model | EN50081-1; EN50082-2; IEC61000-4-3; |
| Brand Name | IXGKHC |
| Unit Count | 1 Count |
| Item Weight | 3.4 ounces |
| Output Type | Analog |
| Part Number | EN50081-1; EN50082-2; IEC61000-4-3; |
| Manufacturer | IXGKHC |
| Response Time | 1 milliseconds |
| Number of Items | 1 |
| Included Components | EN50081-1; EN50082-2; IEC61000-4-3; |
| Measurement Accuracy | ±1%FS |
| Warranty Description | 1 |
| Maximum Supply Voltage | 6.5 volts_of_direct_current |
| Upper Temperature Rating | 125 °C |
