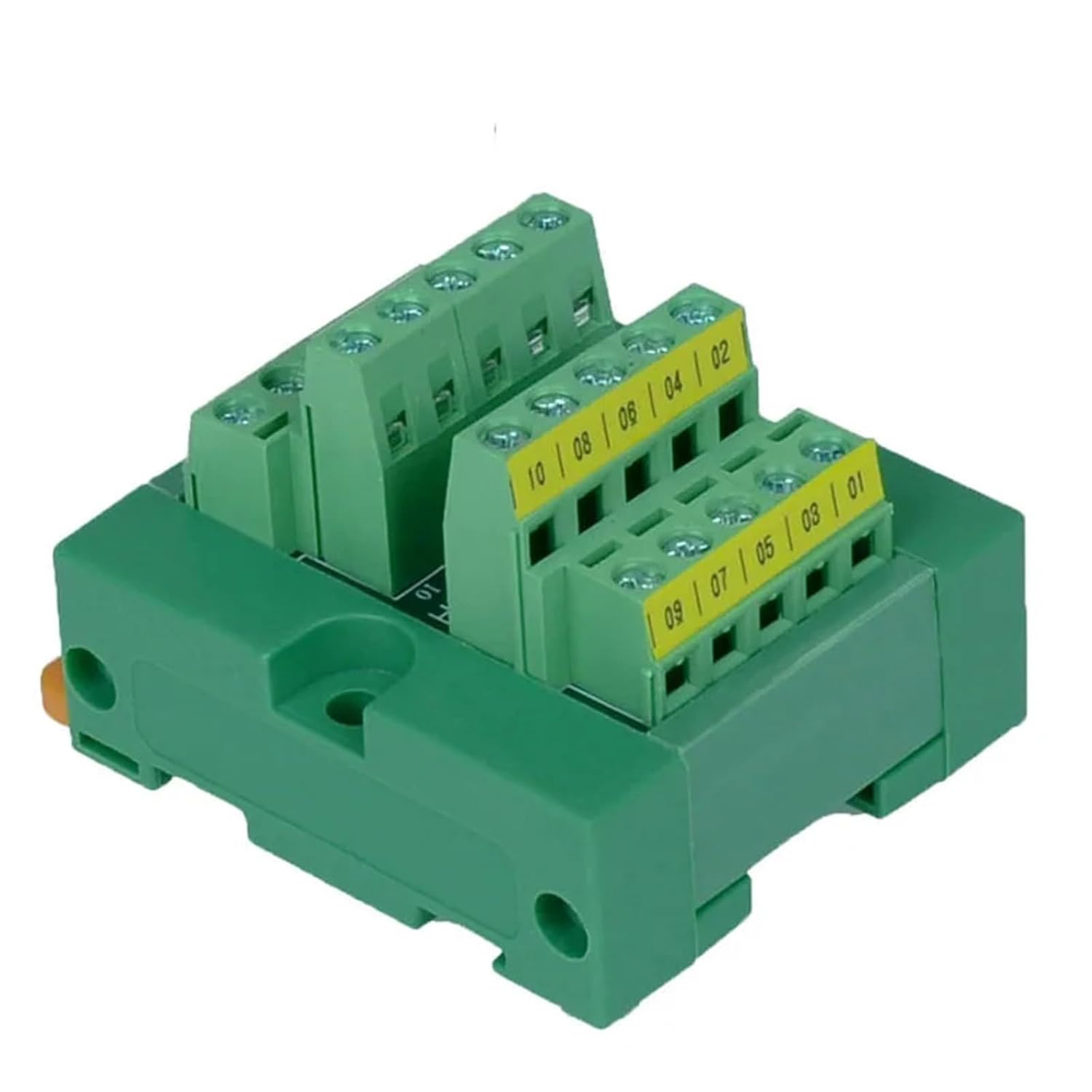

10 Channels to 10 Channels DIN Rail Mounting Board Panel Mounting for Power Supply Distribution Terminal Blocks Splitter Board
Product details
| Management number | 250063113 | Release Date | 2026/09/17 | List Price | US$30.10 | Model Number | 250063113 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Terminal BlocksDIN Rail Mount Power Distribution Module Board.Specification:Voltage - 250Vac/dc, Current Rating - 40A.Input terminals: pitch - 9.5mm, current 40A for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.Output terminals: pitch - 5.08mm/0.2", current 20A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.FR-4 fiber glass PCB, dual copper layers.carriercan support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.==========Model Number : HL-PPB-10-10is_customized : YesProduct Name : FlowerType : Breakout boardWeight : 0.1kgDimension : 60*48*36mm
- Terminal Blocks
- 10 channels to 10 Channels DIN Rail Mounting board Panel Mounting for power supply distribution terminal blocks splitter board
| ASIN | B0HJGXXLQX |
|---|---|
| Color | One Color |
| Gauge | 1 |
| Model | LNNOTXMAM |
| Pitch | 1 inches |
| Brand Name | LNNOTXMAM |
| Part Number | LNNOTXMAM |
| Manufacturer | LNNOTXMAM |
| Connector Type | Clamp |
| Number of Items | 1 |
| Specification Met | ATEX |
| Number Of Contacts | 1 |
| Item Dimensions W x H | 1"W x 1"H |
