00.580.3909 Pneumatic Cylinder for Heidelberg Printing Press，00.580.3909

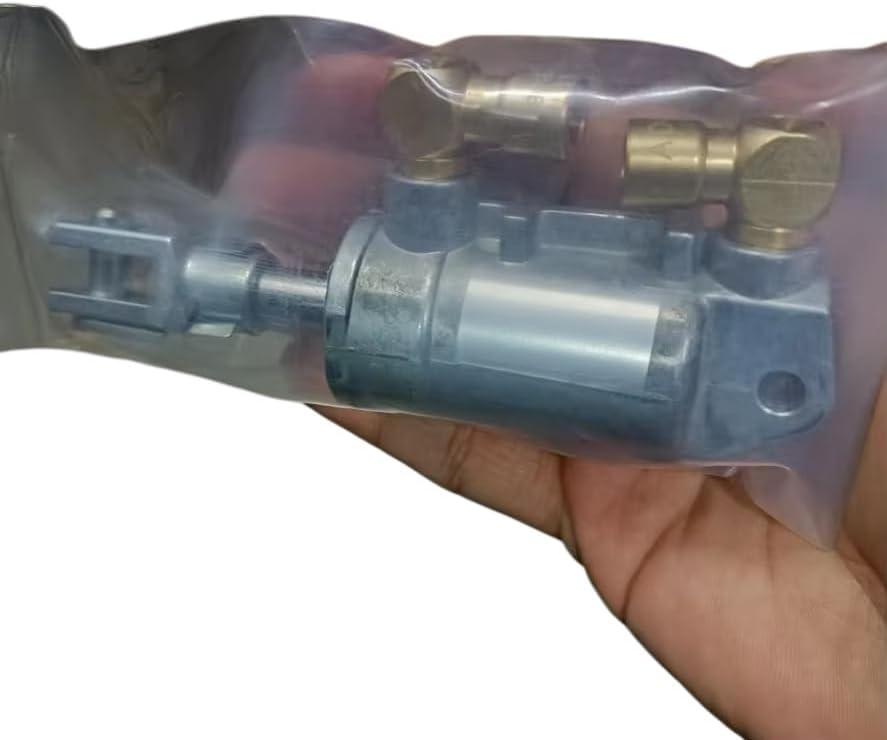

The 00.580.3909 Pneumatic Cylinder is a replacement printing press component designed for corresponding pneumatic actuation, mechanical movement, and linkage applications in compatible Heidelberg printing equipment. The cylinder features a compact metal body with an extended piston rod and a fork-style mechanical connection end for attachment to the corresponding linkage, lever, or moving mechanism. Two pneumatic connection positions are located on the cylinder body for integration with the matching air-line arrangement of the machine. The product page also lists 00.580.3387 and M4.334.009 as separate options. Although these cylinders may have a similar overall appearance, they may differ in body dimensions, bore size, stroke, piston rod length, fork-end dimensions, pneumatic port arrangement, or installation orientation. They should therefore not be treated as interchangeable based on appearance alone. Before ordering, please compare the 00.580.3909 part number, overall cylinder dimensions, bore and stroke specifications, piston rod dimensions, fork-end profile, connection-hole size, pneumatic port positions, port orientation, and actual machine installation position with the original component. Package includes 1 matching 00.580.3909 Pneumatic Cylinder.

• Original part number is 00.580.3909
• 00.580.3387 is not required instead
• M4.334.009 is not required instead
• Overall cylinder length matches
• Cylinder body dimensions correspond
• Stroke matches the original cylinder
• Piston rod diameter corresponds
